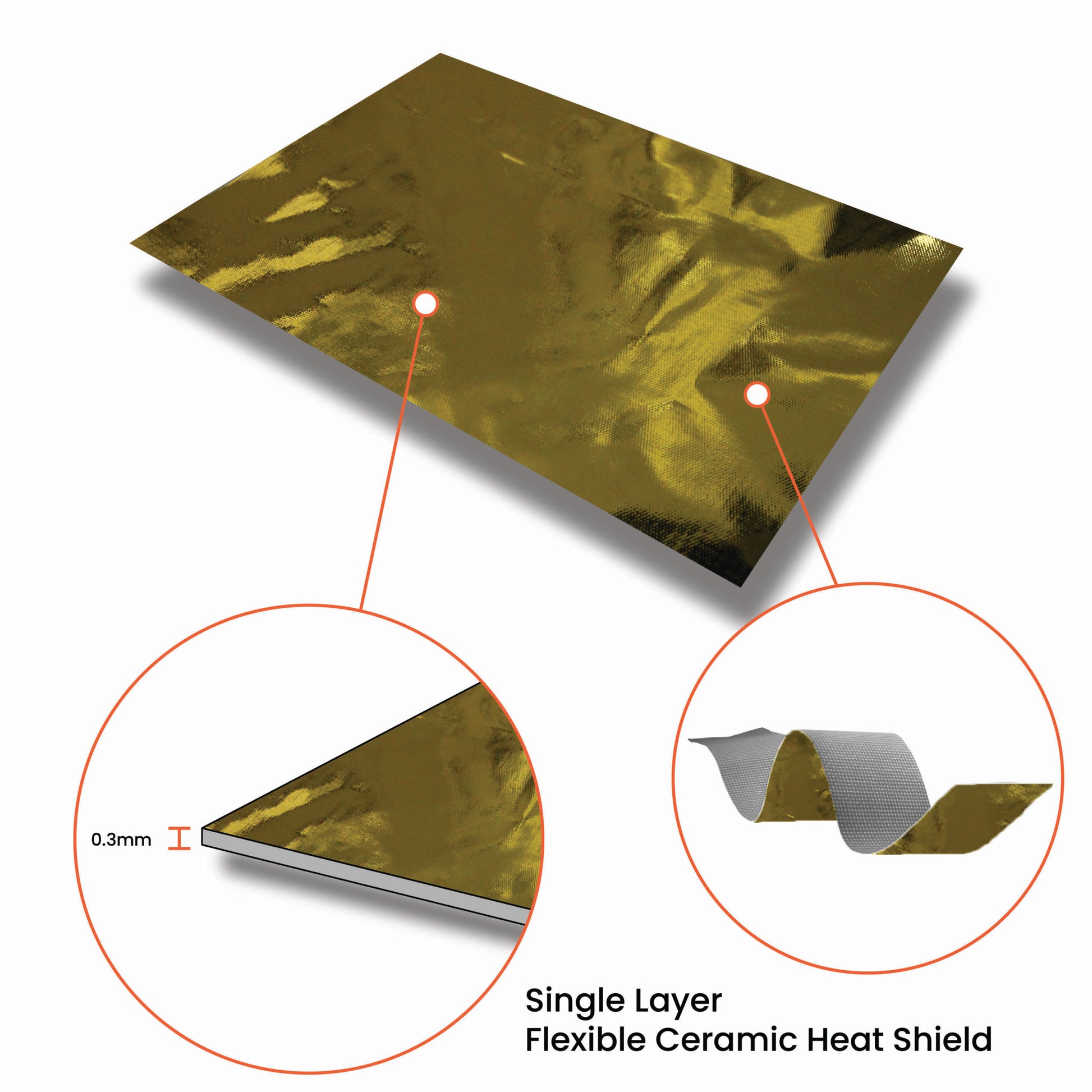

ZircoFlex® GOLD I Ceramic Heat Shield

Description
ZircoFlex® GOLD is a high performance heat shield material offering exceptional levels of protection against both radiant and conductive heat in a single easy to use product.
ZircoFlex® GOLD is easily cut by hand or machine and simple to apply using different fixing options.

General

Plasma-sprayed ceramic matrix on flexible aluminium barrier available as single and multi-layer systems. All ZircoFlex® products are provided with self-adhesive backing for ease of application

ZircoFlex® GOLD I

Thickness
250-300μm (GOLD I)

Mass
460g/m2 (GOLD I)

Available Sizes
Full sheet: 900 x 550mm (GOLD I, GOLD II, GOLD III)

Aesthetic
Colour
Side A: Gold metallic. Side B: Adhesive backing
Thermal - IR Reflectivity 98%
Maximum Operating Temperature
-Direct contact  500ºC*
-Radiant at 20mm separation  900ºC*

Other
Solvent Resistance
Highly resistant on A surface.
Electrical
Aluminium Backing – Electrically conductive (59.5% IACS)

Notes
*ZircoFlex® GOLD II and ZircoFlex® GOLD III comprise an internal adhesion layer with a reduced operating temperature of 300ºC compared to the surrounding ZircoFlex® ceramic/metallic foil. Operation beyond this point may result in localised delamination, however thermal performance will not be impacted until 500ºC.
