ZircoFlex® FOIL I Ceramic Heat Shield

Description

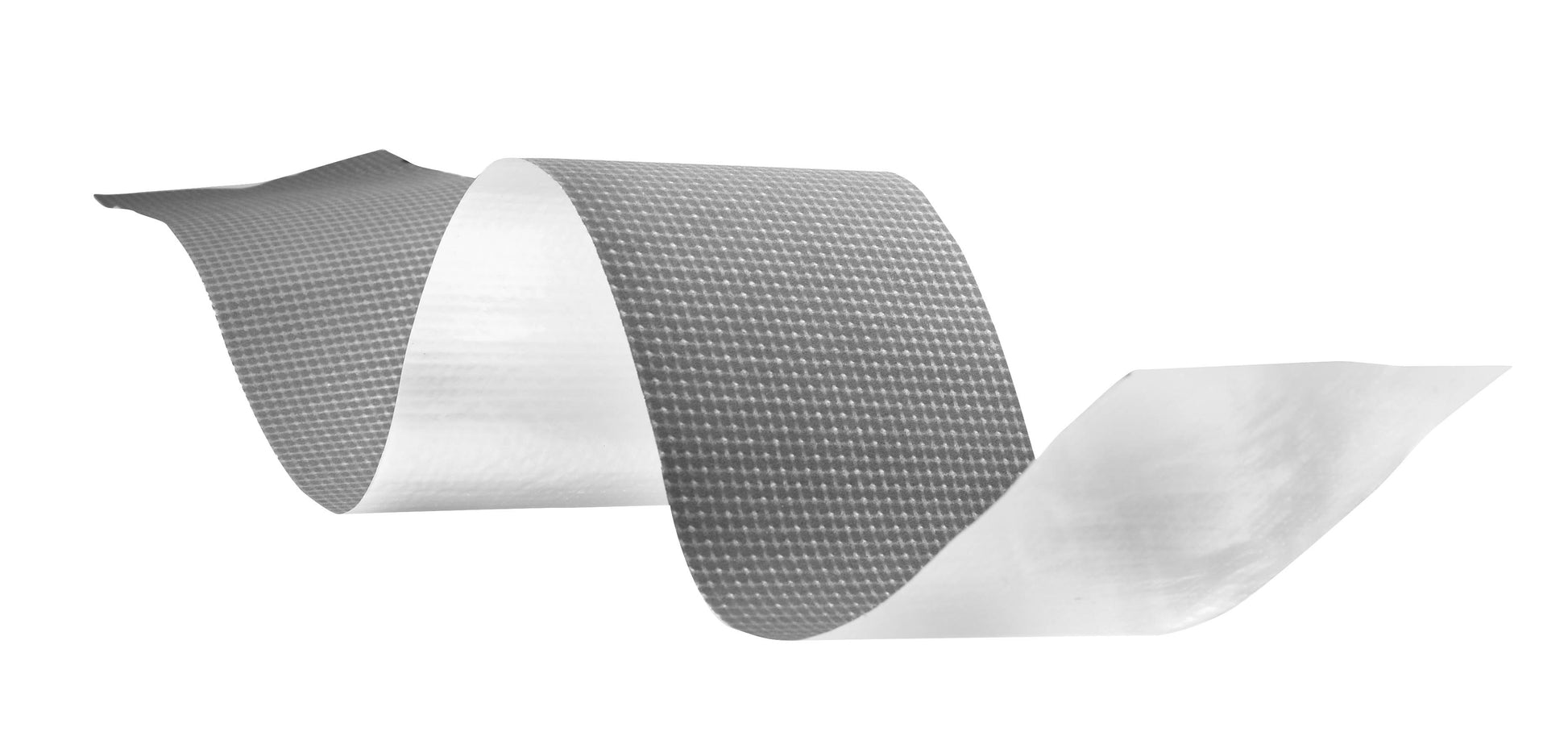

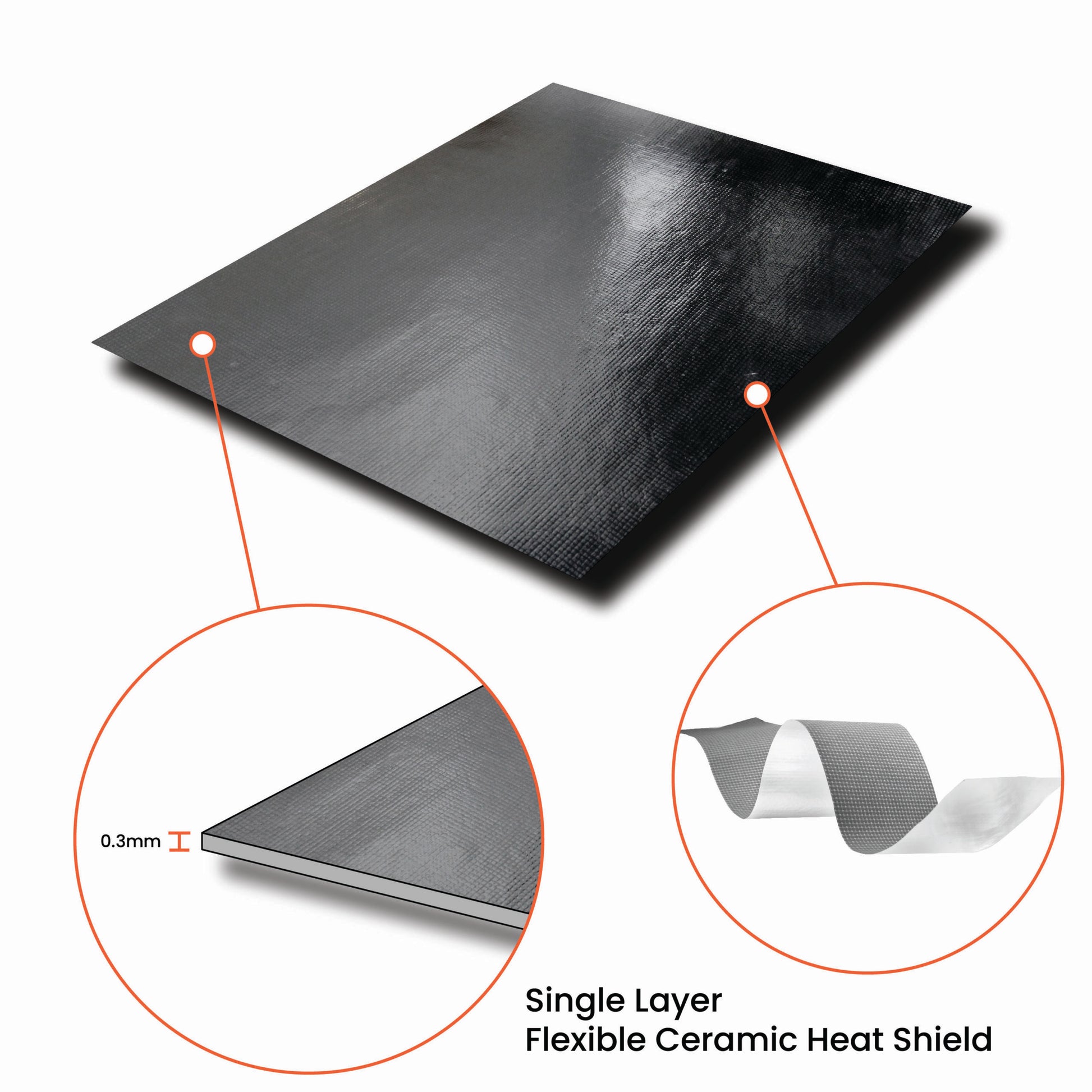

ZircoFlex® FOIL is an ultra-thin and lightweight heat shielding product comprising Zircotec plasma-sprayed ceramic coating on a flexible aluminium backed foil. Offering superb thermal barrier performance at minimal weight and thickness. ZircoFlex® FOIL is easily cut by hand or machine and simple to apply using different fixing options.

General

Plasma-sprayed ceramic matrix on flexible aluminium barrier available as single and multi-layer systems. All ZircoFlex® products are provided with self-adhesive backing for ease of application

ZircoFlex® FOIL I

Thickness:
250-300μm  (FOIL I)

Mass:
460g/m2 (FOIL I)

(Also available in ZircoFlex® FOIL II and ZircoFlex® FOIL III)

Available Sizes
Full sheet: 900 x 550mm  (FOIL I, FOIL II, FOIL III)
Half sheet: 450 x 550mm  (FOIL I)
A4 sheet: 297 x 210mm  (FOIL I)

Aesthetic
Colour Side A: Silver metallic. Side B: Adhesive backing

Thermal
IR Reflectivity
~90% (Visible/NIR), 98% (MIR/FIR)
Maximum Operating Temperature
-Direct contact  500ºC*
-Radiant at 20mm separation  900ºC*
Thermal Conductivity
0.6 W/mK
Specific Heat Capacity
880 J/kgK
